Ammunition
Production Lines
Custom-made lines for rifle, pistol and revolver ammunition.
Servo Transfer press
The Servoteh Servo Transfer Press is a state-of-the-art vertical press engineered for assembling bullet components such as cups and lead cores. By using servo-driven transfer mechanisms, parts move smoothly and precisely between stations, ensuring accuracy and reliability in every cycle.
Each stage of production is equipped with integrated sensors that verify part alignment and quality. If any deviation occurs, the system instantly interrupts the process, ensuring maximum operator safety and protecting the tooling.
The robust frame structure combined with modern servo technology allows high cycle rates with reduced energy consumption and extended tool life. With its modular design and intuitive control system, the press enables quick changeovers and flexibility for a wide range of calibers, making it a perfect fit for modern high-volume ammunition production lines.
Key Advantages:
Production speed up to 180 parts per minute Energy-efficient operation with only 40 kW power consumption
Hydraulic deep drawing press
Hydraulic deep drawing presses are developed for integration into automatic and semi-automatic production lines, ensuring precise forming of complex parts.
The equipment is designed to provide stable operation under high loads, enabling consistent quality in deep drawing applications.
Machines are adaptable for different tooling configurations, supporting a wide range of production requirements.

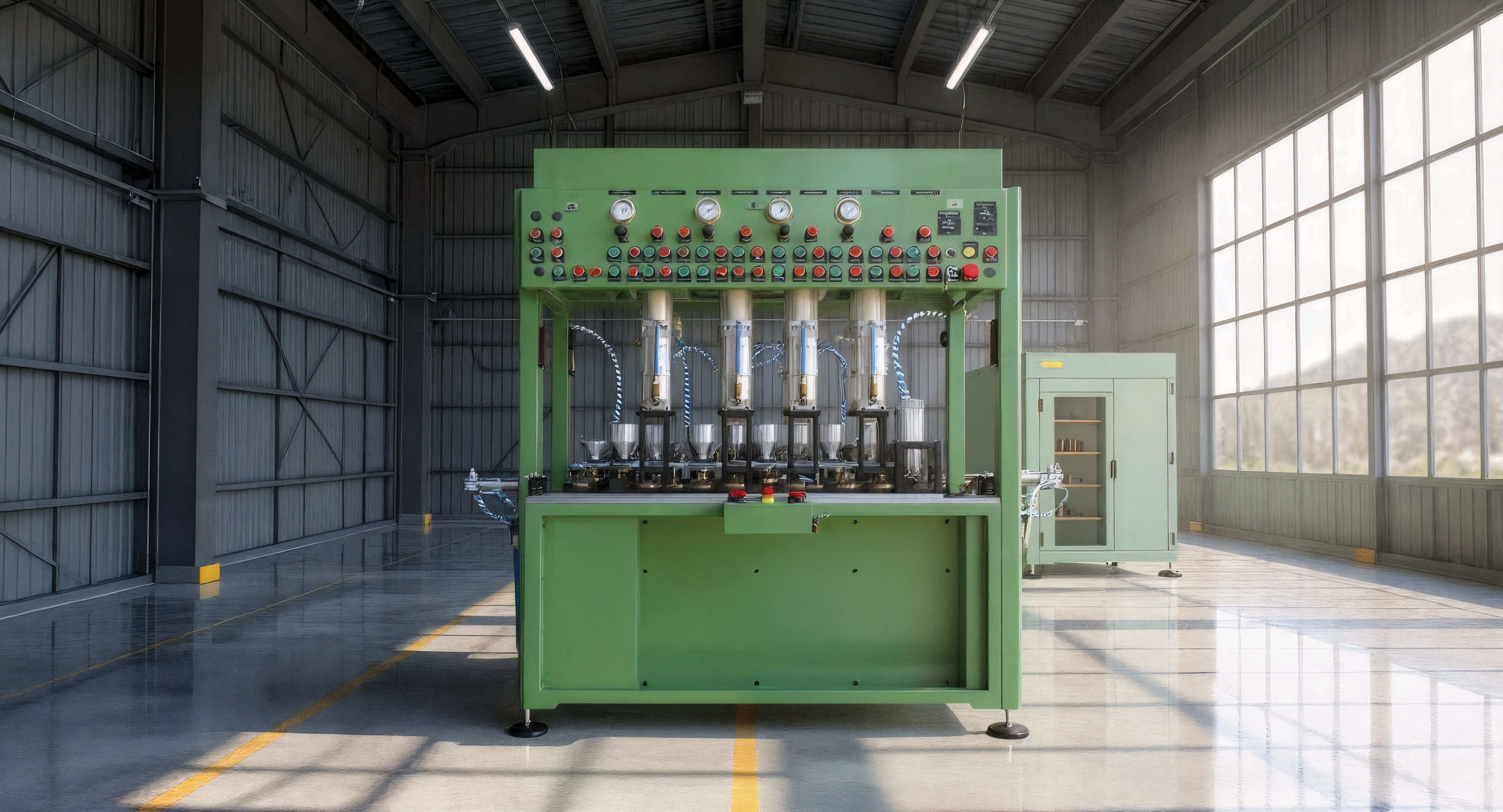

Machines for pyrotechnic
retarders production
Production lines for pyrotechnic retarders are equipped with linear transfer systems, enabling cycle times from 0.8–1.0 sec.
Dosing accuracy is maintained in the range of 0.03–0.1 g per cycle, with high repeatability and safety standards.
With a maximum forming speed of 5 mm/s and pressing pressures up to 2500 bar, the system guarantees precise and reliable component shaping.
The machines are suitable for continuous industrial operation, combining robust mechanical construction with advanced process control.
